Cosine Integral

There are (at least) three types of ``cosine integrals,'' denoted $\mathop{\rm ci}\nolimits (x)$, $\mathop{\rm Ci}\nolimits (x)$, and $\mathop{\rm Cin}\nolimits (x)$:

$$\mathop{\rm ci}\nolimits (x) \equiv - \int_x^\infty {\cos t\,dt\over t}$$ (1)

$$= {\textstyle{1\over 2}}[\mathop{\rm ei}\nolimits (ix)+\mathop{\rm ei}\nolimits (-ix)]$$ (2)

$$= -{\textstyle{1\over 2}}[\hbox{E}_1(ix)+\hbox{E}_1(-ix)],$$ (3)

$$\mathop{\rm Ci}\nolimits (x) \equiv \gamma+\ln z+\int_0^z{\cos t-1\over t}\,dt$$ (4)

$$\mathop{\rm Cin}\nolimits (x) \equiv \int_0^z {(1-\cos t)\,dt\over t}$$ (5)

$$= -\mathop{\rm Ci}\nolimits (x)+\ln x+\gamma.$$ (6)

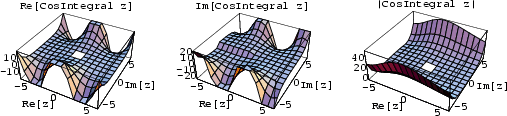

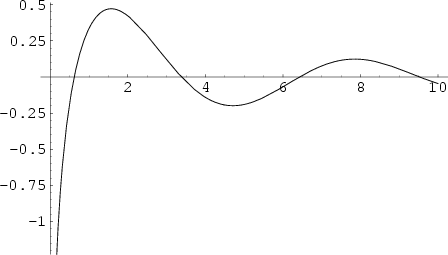

Here, $\mathop{\rm ei}\nolimits (x)$ is the Exponential Integral, E${}_n(x)$ is the En-Function, and $\gamma$ is the Euler-Mascheroni Constant. $\mathop{\rm ci}\nolimits (x)$ is the function returned by the Mathematica ${}^{\scriptstyle\circledRsymbol}$ (Wolfram Research, Champaign, IL) command CosIntegral[x] and displayed above.

To compute the integral of an Even power times a cosine,

$$I\equiv \int x^{2n}\cos(mx)\,dx,$$ (7)

use Integration by Parts. Let

$$u=x^{2n}\qquad dv=\cos(mx)\,dx$$ (8)

$$du=2nx^{2n-1}\,dx \qquad v={1\over m} \sin(mx),$$ (9)

so

$$I={1\over m} x^{2n}\sin(mx)-{2n\over m}\int x^{2n-1}\sin(mx)\,dx.$$ (10)

Using Integration by Parts again,

$$u=x^{2n-1}\qquad dv=\sin(mx)\,dx$$ (11)

$$du=(2n-1)x^{2n-2}\,dx \qquad v=-{1\over m} \cos(mx),$$ (12)

and

$\int x^{2n}\,\cos(mx)\,dx$
$={1\over m} x^{2n}\sin(mx)-{2n\over m}\left[{-{1\over m} x^{2n-1}\cos(mx)}\right.$
$\left.{ +{2n-1\over m}\int x^{2n-2}\cos(mx)\,dx}\right]$
$= {1\over m}x^{2n}\sin(mx)+{2n\over m^2} x^{2n-1}\cos(mx)$
$-{(2n)(2n-1)\over m^2} \int x^{2n-2}\cos(mx)\,dx$
$= {1\over m}x^{2n}\sin(mx)+{2n\over m^2} x^{2n-1}\cos(mx)$
$+\ldots+{(2n)!\over m^{2n}} \int x^0\cos(mx)\,dx$
$= {1\over m}x^{2n}\sin(mx)+{2n\over m^2} x^{2n-1}\cos(mx)$
$+\ldots+{(2n)!\over m^{2n+1}} \sin(mx)$
$=\sin(mx)\sum_{k=0}^n (-1)^{k+1} {(2n)!\over (2n-2k)! m^{2k+1}} x^{2n-2k}$
$+\cos(mx)\sum_{k=1}^n (-1)^{k+1} {(2n)!\over (2k-2n-1)!m^{2k}} x^{2n-2k+1}.$
	(13)

Letting $k'\equiv n-k$,

$\int x^{2n}\,\cos(mx)\,dx=\sin(mx)\sum_{k=0}^n (-1)^{n-k+1} {(2n)!\over (2k)!m^{2n-2k+1}} x^{2k}$
$+ \cos(mx) \sum_{k=0}^{n-1} (-1)^{n-k+1} {(2n)!\over (2k-1)!m^{2n-2k}} x^{2k+1}$
$= (-1)^{n+1}(2n)!\left[{\sin(mx)\sum_{k=0}^n {(-1)^k\over (2k)!m^{2n-2k+1}} x^{2k}}\right.$
$+\left.{\cos(mx)\sum_{k=1}^n {(-1)^{k+1}\over (2k-3)!m^{2n-2k+2}} x^{2k-1}}\right].\quad$	(14)

To find a closed form for an integral power of a cosine function,

$$I\equiv \int \cos^m x\,dx,$$ (15)

perform an Integration by Parts so that

$$u=\cos^{m-1} x \qquad dv=\cos x\,dx$$ (16)

$$du=-(m-1)\cos^{m-2}x\sin x\,dx \qquad v=\sin x.$$ (17)

Therefore

$I = \sin x\cos^{m-1} x+(m-1)\int \cos^{m-2}x\sin^2 x\,dx$
$= \sin x\cos^{m-1} x+(m-1)\left[{\int \cos^{m-2}x\,dx-\int \cos^mx\,dx}\right]$
$=\sin x\cos^{m-1} x+(m-1)\left[{\int \cos^{m-2}x\,dx-I}\right],\quad$	(18)

so

$$I[1+(m-1)] = \sin x\cos^{m-1} x+(m-1)\int \cos^{m-2}x\,dx$$ (19)

$$I = \int \cos^m x\,dx = {\sin x\cos ^{m-1}x\over m}+{m-1\over m}\int \cos^{m-2} x\,dx.$$ (20)

Now, if $m$ is Even so $m\equiv 2n$, then

$\int\cos^{2n}x\,dx = {\sin x\cos^{2n-1}x\over 2n}+{2n-1\over 2n}\int \cos^{2n-2}x\,dx$
$={\sin x\cos^{2n-1}x\over 2n} +{2n-1\over n}\left[{{\sin x\cos^{2n-3}x\over 2n-2} + {2n-3\over 2n-2} \int \cos^{2n-4}x\,dx}\right]$
$=\sin x\left[{{1\over 2n} \cos^{2n-1}x+{2n-1\over (2n)(2n-2)} \cos^{2n-3}x}\right]+ {(2n-1)(2n-3)\over (2n)(2n-2)} \int \cos^{2n-4} x\,dx$
$= \sin x\left[{{1\over 2n} \cos^{2n-1}x+{2n-1\over (2n)(2n-2)} \cos^{2n-3}x +\ldots}\right]+ {(2n-1)(2n-3)\cdots 1\over (2n)(2n-2)\cdots 2} \int \cos^0 x\,dx$
$= \sin x\sum_{k=1}^n {(2n-2k)!!\over (2n)!!} {(2n-1)!!\over (2n-2k+1)!!}\cos^{2n-2k+1}x+{(2n-1)!!\over (2n)!!} x.$	(21)

Now let $k'\equiv n-k+1$, so $n-k=k'-1$,

$\int\cos^{2n}x\,dx = \sin x\sum_{k=1}^n {(2k-2)!!\over (2n)!!} {(2n-1)!!\over (2k-1)!!}\cos^{2k-1}x+{(2n-1)!!\over (2n)!!} x$
$= {(2n-1)!!\over (2n)!!}\left[{\sin x\sum_{k=0}^{n-1} {(2k)!!\over (2k+1)!!}\cos^{2k+1}x+ x}\right].\quad$	(22)

Now if $m$ is Odd so $m\equiv 2n+1$, then

$\int\cos^{2n+1}x\,dx = {\sin x\cos^{2n}x\over 2n+1}+{2n\over 2n+1}\int \cos^{2n-1}x\,dx$
$= {\sin x\cos^{2n}x\over 2n+1}+{2n\over 2n+1}\left[{{\sin x\cos ^{2n-2}x\over 2n-1} + {2n-2\over 2n-1} \int \cos^{2n-3}x\,dx}\right]$
$= \sin x\left[{{1\over 2n+1} \cos^{2n}x+{2n\over (2n+1)(2n-1)} \cos^{2n-2}x}\right]+ {(2n)(2n-2)\over (2n+1)(2n-1)} \int \cos^{2n-3} x\,dx$
$= \sin x\left[{{1\over 2n+1} \cos^{2n}x+{2n\over (2n+1)(2n-1)} \cos^{2n-2}x + \ldots}\right]+{(2n)(2n-2)\cdots 2\over (2n+1)(2n-1)\cdots 3} \int \cos x\,dx$
$= \sin x\sum_{k=0}^{n} {(2n-2k-1)!!\over (2n+1)!!} {(2n)!!\over (2n-2k)!!} \cos^{2n-2k}x.$	(23)

Now let $k'\equiv n-k$,

$$\int\cos^{2n}x\,dx ={(2n)!!\over (2n+1)!!} \sin x\sum_{k=0}^{n} {(2k-1)!!\over(2k)!!} \cos^{2k}x.$$ (24)

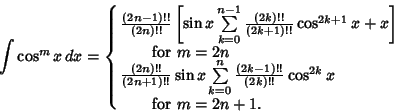

The general result is then

$$\int \cos^m x\,dx=\cases{ {(2n-1)!!\over (2n)!!}\left[{\sin... ...)!!\over (2k)!!} \cos^{2k}x\cr \qquad {\rm for\ } m=2n+1.\cr}$$ (25)

The infinite integral of a cosine times a Gaussian can also be done in closed form,

$$\int_{-\infty}^\infty e^{-ax^2}\cos(kx)\,dx = \sqrt{\pi\over a}\,e^{-k^2/4a}.$$ (26)

See also Chi, Damped Exponential Cosine Integral, Nielsen's Spiral, Shi, Sici Spiral, Sine Integral

References

Abramowitz, M. and Stegun, C. A. (Eds.). ``Sine and Cosine Integrals.'' §5.2 in Handbook of Mathematical Functions with Formulas, Graphs, and Mathematical Tables, 9th printing. New York: Dover, pp. 231-233, 1972.

Arfken, G. Mathematical Methods for Physicists, 3rd ed. Orlando, FL: Academic Press, pp. 342-343, 1985.

Press, W. H.; Flannery, B. P.; Teukolsky, S. A.; and Vetterling, W. T. ``Fresnel Integrals, Cosine and Sine Integrals.'' §6.79 in Numerical Recipes in FORTRAN: The Art of Scientific Computing, 2nd ed. Cambridge, England: Cambridge University Press, pp. 248-252, 1992.

Spanier, J. and Oldham, K. B. ``The Cosine and Sine Integrals.'' Ch. 38 in An Atlas of Functions. Washington, DC: Hemisphere, pp. 361-372, 1987.
