Inversion

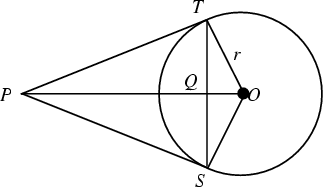

Inversion is the process of transforming points to their Inverse Points. This sort of inversion was first systematically investigated by Jakob Steiner. Two points are said to be inverses with respect to an Inversion Circle with Inversion Center $O=(x_0,y_0)$ and Inversion Radius $k$ if $PT$ and $PS$ are line segments symmetric about $OP$ and tangent to the Circle, and $Q$ is the intersection of $OP$ and $ST$. The curve to which a given curve is transformed under inversion is called its Inverse Curve.

Note that a point on the Circumference of the Inversion Circle is its own inverse point. The inverse points obey

$${OP\over k}={k\over OQ},$$ (1)

or

$$k^2=OP\times OQ,$$ (2)

where $k^2$ is called the Power. The equation for the inverse of the point $(x,y)$ relative to the Inversion Circle with Inversion Center $(x_0,y_0)$ and inversion radius $k$ is therefore

$$x' = x_0+{k^2(x-x_0)\over(x-x_0)^2+(y-y_0)^2}$$ (3)

$$y' = y_0+{k^2(y-y_0)\over(x-x_0)^2+(y-y_0)^2}.$$ (4)

In vector form,

$${\bf x}'={\bf x}_0+{k^2({\bf x}-{\bf x}_0)\over \vert{\bf x}-{\bf x}_0\vert^2}.$$ (5)

Any Angle inverts to an opposite Angle.

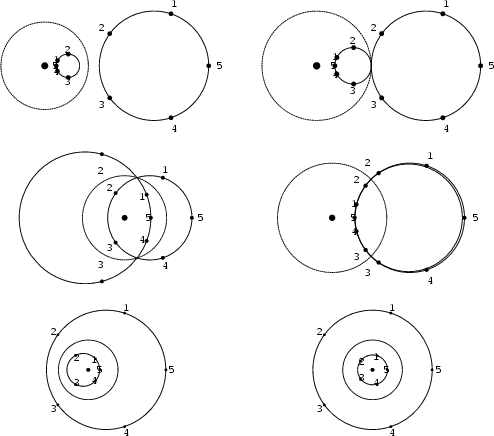

Treating Lines as Circles of Infinite Radius, all Circles invert to Circles. Furthermore, any two nonintersecting circles can be inverted into concentric circles by taking the Inversion Center at one of the two limiting points (Coxeter 1969), and Orthogonal Circles invert to Orthogonal Circles (Coxeter 1969).

The inverse of a Circle of Radius $a$ with Center $(x,y)$ with respect to an inversion circle with Inversion Center $(0,0)$ and Inversion Radius $k$ is another Circle with Center $(x',y')=(sx, sy)$ and Radius $r'=\vert s\vert a$, where

$$s\equiv {k^2\over x^2+y^2-a^2}.$$ (6)

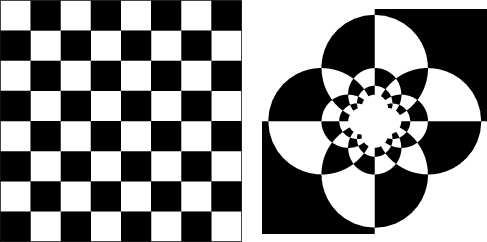

The above plot shows a checkerboard centered at (0, 0) and its inverse about a small circle also centered at (0, 0) (Dixon 1991).

See also Arbelos, Hexlet, Inverse Curve, Inversion Circle, Inversion Operation, Inversion Radius, Inversive Distance, Inversive Geometry, Midcircle, Pappus Chain, Peaucellier Inversor, Polar, Pole (Geometry), Power (Circle), Radical Line, Steiner Chain, Steiner's Porism
